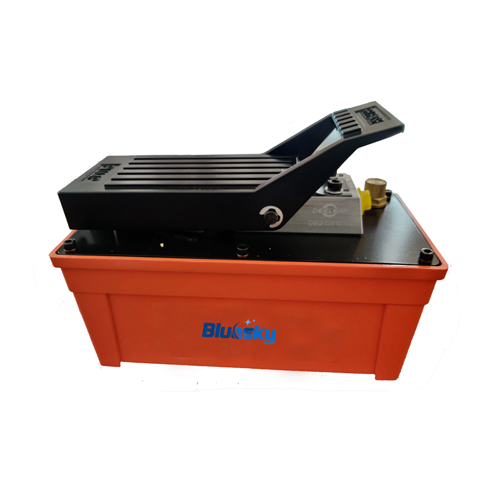

Air hydraulic pump foot pump

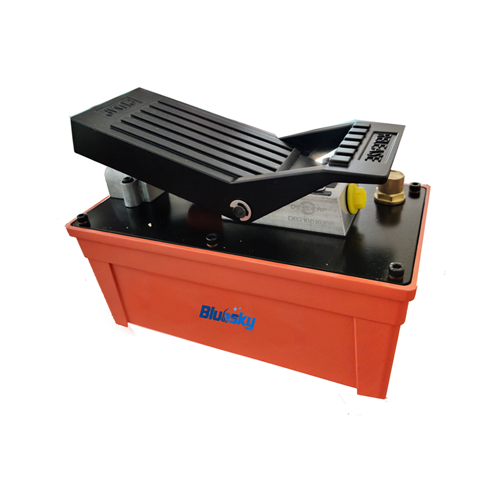

Air hydraulic pump foot pump - Image 2

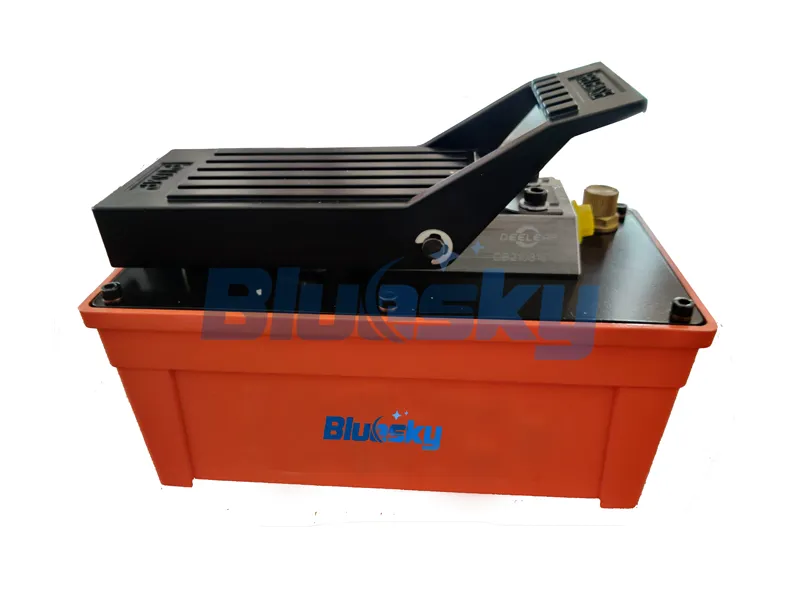

Air hydraulic pump foot pump

1.6 Liter Oil tank capacity, 70 Mpa 10000psi, Aluminum reservoir

SKU: SRC-air-hydraulic-pump-foot-pump Category:

Equipment Overview

1.6 Liter Oil tank capacity, 70 Mpa 10000psi, Aluminum reservoir

700 Bar/ 10000 Psi Single Acting Hydraulic Air Foot Pump

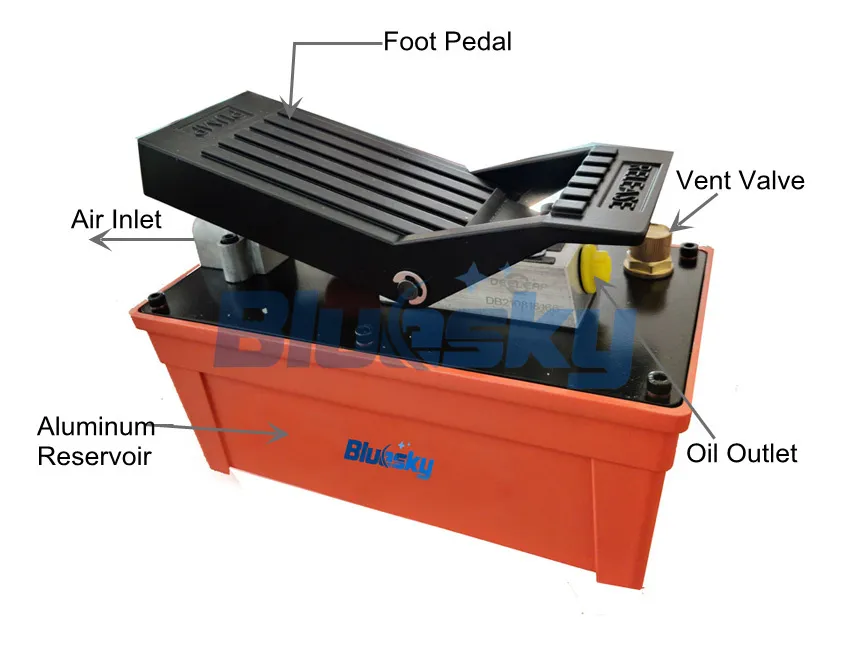

It is a kind of plunger pump. Its working principle is to rely on the reciprocating movement of the plunger in the cylinder to change the volume of the sealed working chamber to achieve oil absorption and pressure. Plunger pump has the advantages of high rated pressure, compact structure and high efficiency. The power source of the pedal pump is pneumatic. The air pressure of 0.5-0.8MPA can drive the pedal pump to work normally, and the rated pressure is 70mpa.

Specification


Model Reservoir type Working Pressure Hydraulic Oil Oil tank capacity Air Input thread Oil outlet thread Weight
LT-AP02 Aluminum reservoir ≤70 Mpa 32# 1.6L NPT1/4” NPT3/8” 7KG



* Widely Applicable
Use able oil 98 cubic inches, suitable for all 10 ton rams, frame and body work.

* Built In Safety
3/8 NPT oil output, safely builds to 10,000 pounds and has a built in safety overload pump saver.

* Standard 3/8 NPT
All threads on all components in set are standard 3/8 NPT.

* Multiple Functions
Apply pressure, hold pressure, release pressure.

* Release Easily
Can release and remove foot as release / return takes effect by release lock plate.

* Long Lasting Seal
Designed to absorb the high pressure from pump with a Teflon back up for long lasting seal performance.





Request a Quote

Send the model, quantity, destination country and available electrical supply to sales@lantian-huaer.com. Configuration, delivery and documentation requirements will be reviewed with your quotation.
