Equipment Overview

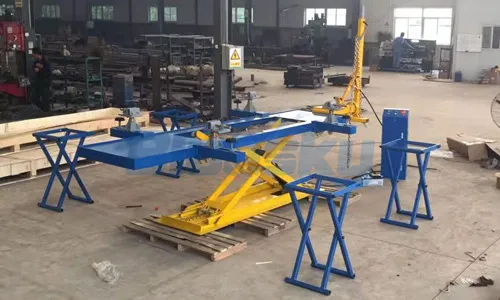

Portable car bench, made by Manganese plate, working length 3320mm;
| FM500 (Simply style) | A | B | C |
| Working platform length | 11’/3.3m | 12’/3.6m | 13’/3.9m |
| Working platform width | 2’11”/0.9m | 2’11”/0.9m | 2’11”/0.9m |
| Working platform height | 5-47”/0.12-1.2m | 5-47”/0.12-1.2m | 5-47”/0.12-1.2m |
| Max working pressure of hydraulic | 70MPa(10000psi) | 70MPa(10000psi) | 70MPa(10000psi) |
| Max lifting force of tower cylinder | 95KN | 95KN | 95KN |
| Pulling range of the tower | 360° | 360° | 360° |
| The pressure of the air source | 0.8MPa | 0.8MPa | 0.8MPa |
| Max lifting weight | 3000kg | 3000kg | 3000kg |
| Equipment gross weight | 1600kg | 1700kg | 1800kg |
| Power unit voltage/Electric pump power | 220V/ 2.2kw | 220V/ 2.2kw | 220V/ 2.2kw |
Features:
1. The Dataliner U3 Auto Body Collision Repair Systems is designed for Europe and North America. Its
features are small size, big pulling force, convenient drive-on and drive-off, flexible operation and high
efficiency.
2. The platform is made by Manganese plate, it is with high strength and good rigidity.
3. With the strong universal towers, it is very easy to pull the cars at any angle as the towers are easily
to move and fixed at any point of the platform.
4. Lifting and lowering structure is convenient for platform height adjustment ,which satisfies the needs
of various repairing height.
5. Hydraulic system with good design is powerful and gives it a long useful life and low failture rate.
6. High quality chain (T8) and forged sheet metal tools (45#) are easy and convenient to operate with
long service life.
7. The height of the principal clamps is adjustable and this helps to position and clamp the car fast,
exactly and firmly.
8. Appropriate for operating maintenance of medium or small cars,especially for auto body shop.
Request a Quote
Send the model, quantity, destination country and available electrical supply to sales@lantian-huaer.com. Configuration, delivery and documentation requirements will be reviewed with your quotation.
