Equipment Overview
Australian auto spray paint booth BSH-SP9200B(AU) — review the equipment details and specifications below. Contact BLUESKY to discuss a configuration for your workshop.

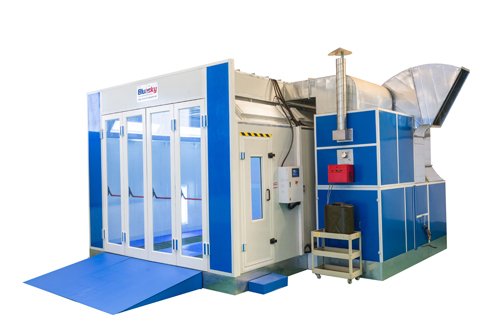

Australian Standard auto painting booth BSH-SP9200B(AU)
Specification
| Dimensions | Length(mm) | Width(mm) | Height(mm) |
| Outer Size | 7.050 | 5,200 | 3,500 |
| Internal Size | 6.900 | 3,900 | 2,700 |
| Entrance Door | Three folds(four folds is optional) | 3,000 | 2,700 |
| Operatior’s Door | Adopt with handle and Anti-Explosion lock | 850 | 2,000 |
Description
Total power 13 kw; 380V/3ph/50hz; Noise < 80db
Fireproof insulation EPS panel, thickness: 75mm(Rock wall optional)
Full metal foundation, 300mm height;
Flat steel gridsx2 rows, metal non-stip diamond platesx3 rows;
The grids are twisted steel for the cross bar steel grating;
Galvanized and beautiful, durable and better force bearing.
Italy Riello diesel burner G20x1 (Gas burner and Electrical heating optional);
Heat exchangerx1 , high efficient heat-resistant stainless steel as cycling;
4-6 minutes (from 20-60℃) underbaking status, max temperature is 80℃;
Cabinet x 1 (Rock-wool insulation); Air ducts x 2.
Pre-filters Can Capture Granules Larger than 10um;
Ceiling filter can Capture Granules Bigger than 4um.
Floor filter multilayer glass fiber, air cleanliness in room can reach 98%
Ceiling light , 8 groupx4pcs = 32pcsx36w ;
Bottom light , 6 groupx4pcs = 24pcsx36w ;
More than 1000 LUX
With light fixture , anti-explosion design.
Air-Intake Fans * 1units 7.5KW capacity: 20000 m³/h
Exhaust fan* 1 units 7.5 KW capacity: 20000 m³/h
Air velocity 0.4 m/s Motor outside of the cabinet
Cabinet for the fans* 1unit, Air Ducts* 3pcs, and Air Damper(electric)* 1unit
One unit;
Including lighting switch, painting switch, warm painting, baking temperature, time setting, urgent stop switch.
All components with famous domestic brand .
All sets of hardware, fasteners and sealants.

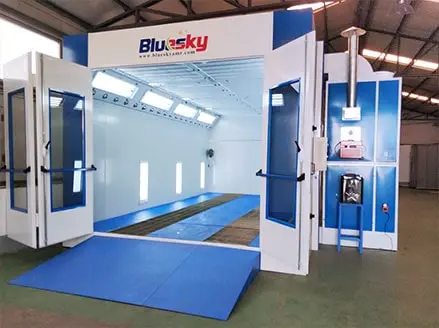

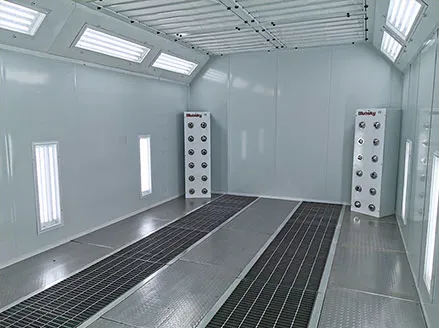

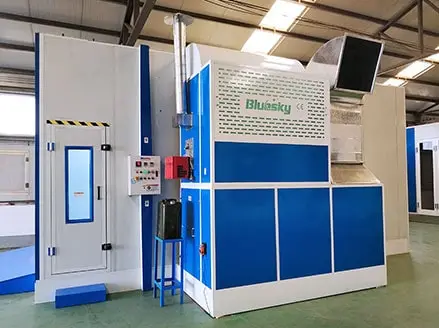

Product Detail
Request a Quote
Send the model, quantity, destination country and available electrical supply to sales@lantian-huaer.com. Configuration, delivery and documentation requirements will be reviewed with your quotation.
