Equipment Overview
Spray paint booth BSH-SP9100A — review the equipment details and specifications below. Contact BLUESKY to discuss a configuration for your workshop.

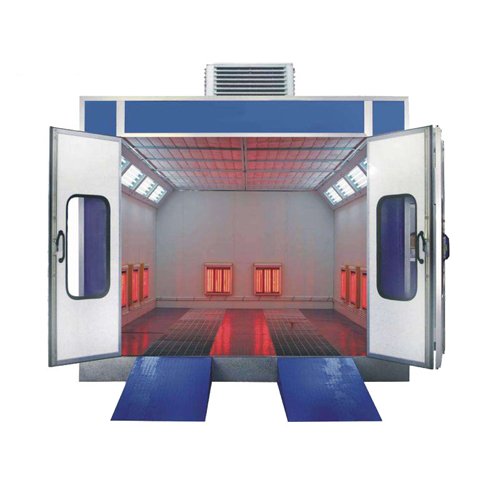

Automotive spray booth BSH-SP9100A
Specification
| Dimensions | Length(mm) | Width(mm) | Height(mm) |
| Outer Size | 8,000 | 4,000 | 4,200 |
| Internal Size | 6.900 | 3,900 | 2,650 |
| Entrance Door | Adopt with handle and lock | 3,000 | 2,600 |
| Operatior’s Door | Adopt with handle and Anti-Explosion | 800 | 2,000 |
Description
Total power 30 kw; 380V/3ph/50hz; Noise < 80db
Adopt high quality EPS panel, thickness: 50mm, Density is 12Kg/m3，0.476mm thick, colored steel on both side, socket type assembling. Ramps×2pcs, 630 mm with slope. Roof board with 0.7mm zinc plated steel sheet, single layer.
All around with welded 1.2mm zinc plated steel sheet, Bearing bracket with welded zinc plated steel is full of hot dip galvanized steel.
Two rows of grid and three rows of diamond plate.
Adopt surface type infrared heat lamp,10 group×3pcs, 1kw/pc
Inlet with high grad fiberglass filter, which filtered the dust larger than 10um, roof with EU5 CC-600G filter, TSP value: ≤1.4mg/m3.
Ceiling light , 8 groupx4pcs = 32pcsx36w ;
With light fixture , anti-explosion design.
Adopt two pcs energy saving fan, power 1.5kw, Air volume: 24000m3/h;
Rated air speed: 0.3m/s, air changes; 260 times/h. With 3 pcs straight air ducts, 1pc ellow air duct.
One unit;
Including lighting switch, painting switch, warm painting, baking temperature, time setting, urgent stop switch.
All components with famous domestic brand.
All sets of hardware, fasteners and sealants.
